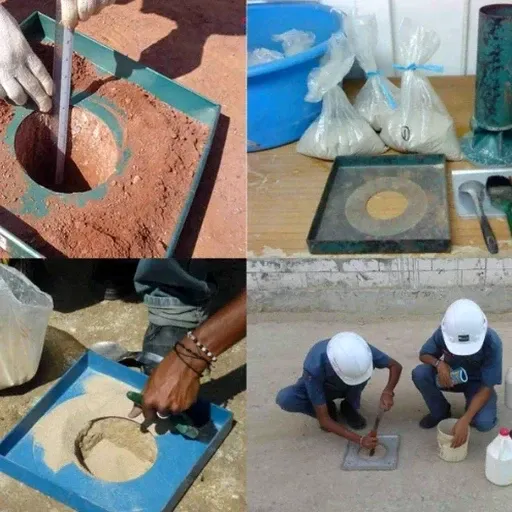

Mount Taranaki dominates the skyline, but what lies beneath the surface in New Plymouth is just as critical for any construction project. With over 80,000 residents and a history of light but notable seismic activity — the 2014 Eketahuna quake was felt here — builders and engineers know that compaction verification is non-negotiable. The field density test using the sand cone method remains one of the most practical and reliable ways to confirm that engineered fill, subgrade, or trench backfill meets specification. Because the region's volcanic ash soils, known as Taranaki ash, can behave unpredictably when wet, verifying in-place density directly on the pad or in the trench gives project managers real confidence before concrete is poured or asphalt is laid. We run these tests across New Plymouth, from the coastal subdivisions near Fitzroy Beach to industrial earthworks out toward Bell Block, always calibrating the sand cone apparatus with the local silica sand gradation specified in ASTM D1556 and the relevant sections of NZS 4402. While the sand cone method excels at shallow depth verification, deeper compaction control on larger sites often benefits from a companion CPT test to profile the underlying strata continuously.
A single poorly compacted lift in Taranaki ash can settle 30 mm after the first heavy rain — direct density measurement catches it before the concrete does.
Methodology and scope
Local considerations
A trench backfill job along the New Plymouth coastal walkway extension ran into serious trouble when the contractor skipped field density testing on the final lift. The fill looked solid, passed a visual inspection, and the excavator operator was convinced it was tight. Two weeks later, after a classic Taranaki frontal system dumped 60 mm of rain in 48 hours, the pavement base settled unevenly and cracked the freshly laid footpath panels. The investigation revealed that the underlying Taranaki ash fill had been placed at nearly 6 percent above optimum moisture content, creating a puddled, low-density layer that collapsed upon saturation. A single sand cone field density test on that lift would have flagged the problem immediately — the percent compaction would have come back in the low 80s, well below the 95 percent standard Proctor requirement. The repair cost the contractor over forty thousand dollars in removal, re-compaction, and concrete replacement, and delayed the project by almost a month. In New Plymouth's variable climate, where wet weather can appear with little warning and volcanic soils change behavior rapidly when moisture content shifts, verifying in-place density is not a box-ticking exercise. It is the last line of defense against post-construction settlement that can manifest months after the earthworks are signed off.
Applicable standards
ASTM D1556: Standard Test Method for Density and Unit Weight of Soil in Place by Sand-Cone Method, NZS 4402:1988 Methods of Testing Soils for Civil Engineering Purposes (Test 5.2), NZGS Guidelines for field density testing in volcanic soils
Associated technical services
In-Place Density Verification
Sand cone testing per ASTM D1556 on subgrade, engineered fill, trench backfill, and aggregate base course. Includes moisture content determination by oven drying, Proctor reference correlation, and a test report with percent compaction values acceptable to New Plymouth District Council engineers.
Compaction Control Program Design
Planning the testing grid, lift thickness recommendations, and optimum moisture targeting for Taranaki ash soils. We coordinate laboratory Proctor testing and field scheduling so that density results are available within hours of placing each lift, keeping earthworks moving.
Typical parameters
Frequently asked questions
How much does a sand cone field density test cost in New Plymouth?
The cost for a single sand cone density test in New Plymouth typically ranges from NZ$200 to NZ$240 per test location, depending on the number of tests scheduled on the same day and site accessibility. Mobilization and daily calibration are included within the quoted rate for multi-test programs.
Why use the sand cone method instead of a nuclear density gauge?
The sand cone method provides a direct, physical volume measurement that does not require radiation source licensing, specialized operator certification, or regulatory compliance. In New Plymouth's volcanic ash soils, nuclear gauge readings can be thrown off by mineralogical variations that affect the Compton scattering response, whereas the sand cone is fundamentally a mass-and-volume measurement independent of soil chemistry.
How many density tests do I need for a residential subdivision in New Plymouth?
The New Plymouth District Council typically requires one field density test per lift per 500 m² of compacted area, or a minimum of one test per lift per building platform, whichever is more frequent. For trench backfill under services, a test every 30 linear metres is a common specification. We always recommend confirming the exact frequency with the project geotechnical engineer before starting earthworks.
What moisture content is acceptable for Taranaki ash fill?
Taranaki ash soils compact best within approximately 2% below to 1% above the optimum moisture content determined by the standard Proctor test (NZS 4402). If the soil is too dry, it will not achieve density; if too wet, it will 'pump' under compaction equipment and trap low-density pockets. Our field density testing in New Plymouth includes oven-dried moisture content on every sample so the contractor can adjust water addition or aeration immediately.
